How to Use a Brake Controller for Safe Towing with Your 2023 RAM 1500

Towing with a vehicle like the 2023 RAM 1500 requires careful consideration of safety and control. One essential tool for ensuring a smooth and secure towing experience is the brake controller. This electronic device empowers drivers to regulate the electric trailer brakes from the comfort of the vehicle’s cab. In this guide, we’ll delve into the ins and outs of brake controllers, including their setup and adjustment, and how they play a pivotal role in towing safely with your 2023 RAM 1500 pickup.

What is a Trailer Brake Controller?

A brake controller is a device designed to manage the electric trailer brakes, providing a means for the driver to activate and monitor trailer brake activity from within the vehicle. Typically mounted in the vehicle’s cab, a brake controller offers various controls, including an interface for viewing braking information and buttons for controlling the output and manual activation. These controllers come in various styles and capacities to suit different towing needs.

How does a Trailer Brake Controller work?

When it comes to towing trailers, having the right brake controller is essential for safe and efficient braking. There are two primary types of electronic brake controllers: proportional and time delayed.

Proportional Trailer Brake Controllers: These controllers operate by applying braking force to your trailer in proportion to the force you’re applying to your tow vehicle’s brakes. In other words, the harder you brake, the more force the controller applies to your trailer’s brakes. Modern controllers use accelerometers to detect deceleration, ensuring precise adjustments in brake force.

Time-Delayed Trailer Brake Controllers: In contrast, time-delayed controllers allow you to set a specific gain level, determining the braking force applied by the trailer brakes. Once set, this force remains constant regardless of whether you’re gently slowing down or making a sudden stop. However, this method can result in uneven stops and create a push-pull effect between your trailer and tow vehicle. The advantage is that you can adjust the gain setting while on the move, allowing for adaptability during transit.

Choosing the right type of brake controller depends on your towing preferences and the specific demands of your journey. Each system offers distinct advantages, ensuring you can tailor your braking experience for a safe and smooth ride.

What is the 2023 RAM 1500 Towing Capacity?

Before diving into brake controller operation, it’s crucial to understand the capabilities of the 2023 RAM 1500 itself. This remarkable vehicle boasts a 98% high-strength steel frame, enhancing its stiffness and durability. As a result, it can handle a maximum gas towing capacity of up to 5,798 kilograms, along with a substantial payload capacity of up to 1,043 kilograms.

How to Set up the Electronic Trailer Brake Controller on a 2023 RAM 1500

The Electronic Trailer Brake Controller is a critical tool for anyone towing with a RAM truck. It allows you to tailor the brake sensitivity on the trailer you’re towing, ensuring a safer and more controlled towing experience. Here’s a step-by-step guide on how to use the Electronic Trailer Brake Controller:

Step 1: Plug in the Trailer Wiring Harness
Before you can use the brake controller, ensure that your trailer is securely coupled to your RAM 1500, and the trailer wiring harness is properly plugged into the vehicle. The brake controller relies on power from the vehicle and a connection to the trailer brakes for effective towing.

Step 2: Allow the Brake Controller to Calibrate
Once the trailer is plugged in, the brake controller may need to be calibrated. Most modern brake controllers are self-calibrating, and they will typically signal when the calibration process is in progress and when it’s completed.

Step 3: Select Personal Settings

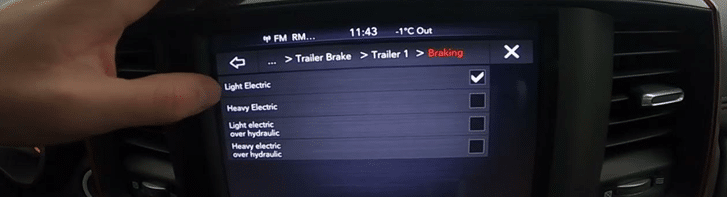

Many brake controllers come with personal settings that you can adjust to your preferences. These settings may include the interface angle, screen brightness, and the controller’s placement within the cab. It’s essential to configure these settings before hitting the road.

Step 4: Set the Maximum Output
The maximum output determines the amount of power the brake controller applies to the trailer brakes. To set it, press and hold the vehicle’s brake pedal. Start with the initial value specified in the controller’s instructions. In a safe, open area, test the trailer brakes by driving at around 40 Km/h and applying the brakes. If the vehicle stops too slowly, increase the maximum output. Conversely, if it stops abruptly or the wheels lock up, reduce the output.

Step 5: Adjust the Sensitivity Level
Sensitivity governs how aggressively the brake controller applies the trailer brakes. You can fine-tune this setting by testing the trailer brakes at various speeds. While driving at approximately 40 Km/h, press the brake pedal. If the vehicle stops too slowly, increase the sensitivity setting; if it stops too abruptly, lower the sensitivity. Regularly testing braking at different speeds will ensure smooth stops in all conditions.

Step 6: Manually Activate Brakes as Needed
Most trailer brake controllers feature a manual activation button. This button allows you to engage the trailer brakes without applying the vehicle’s brakes. Manual trailer brake activation can be particularly handy for correcting minor trailer sway or gradually slowing down on steep inclines or before stops.

How to Adjust the RAM 1500 Trailer Brake Controller Setting

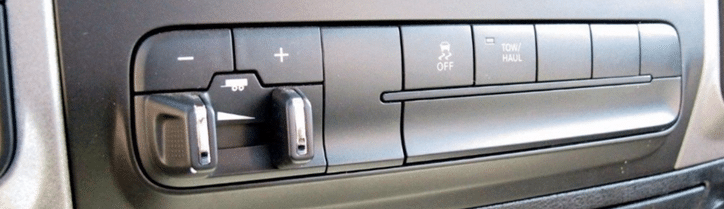

The Electronic Trailer Brake Controller is typically located to the bottom-left of the in-dash touchscreen. It offers two options for engaging the brakes:

  1. Automatic Gain Setting: Use the “+” and “-” buttons to set the brake gain. The gain level will be displayed on the screen.
  2. Manual Brake Activation: You can manually engage the trailer brakes by simultaneously pressing the two sliding paddles located below the “=” and “-” buttons.

To determine the appropriate gain level for your setup, conduct tests in a safe, flat area away from traffic. Begin with a gain setting of 50% and bring your vehicle and trailer to a stop from a low speed, such as 30 Km/h to gauge if the trailer brakes lock up or engage quickly enough. Adjust the Electronic Trailer Brake Controller accordingly.

What’s the Ideal Trailer Brake Controller Gain?
The optimal setting for your brake controller’s gain depends on several factors, primarily the trailer and load size. Here’s a general guideline to follow:

– For larger trailers, use a higher gain setting.

– For smaller trailers, opt for a lower gain setting to prevent brake lockup.

To set the gain correctly, start with the manufacturer-recommended values. Then, conduct tests at 40 Km/h. If the vehicle stops too slowly, increase the gain; if the brakes lock up, decrease it.
